Question

(C) According to Henry's law,the partial pressure of a gas $(P_g)$ is directly proportional to its mole fraction $(X_g)$ in the solution: $P_g = K_H \

Vedclass · Accepted Answer

Vedclass · Answer

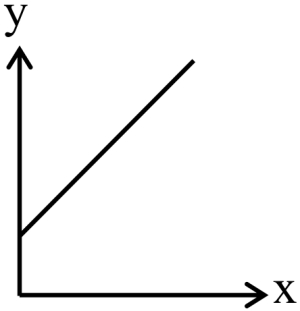

(C) According to Henry's law,the partial pressure of a gas $(P_g)$ is directly proportional to its mole fraction $(X_g)$ in the solution: $P_g = K_H \cdot X_g$. Taking the logarithm on both sides: $log(P_g) = log(K_H \cdot X_g) = log(K_H) + log(X_g)$. This equation is of the form $y = mx + c$,where $y = log(P_g)$,$x = log(X_g)$,the slope $m = 1$,and the intercept $c = log(K_H)$. Since the slope is $1$ (positive) and there is a positive intercept $log(K_H)$,the plot is a straight line with a positive slope that does not pass through the origin. This corresponds to Plot $C$.

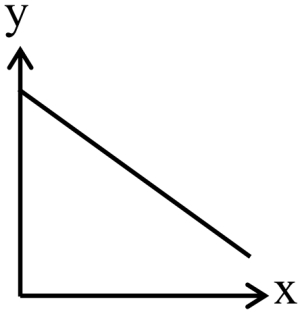

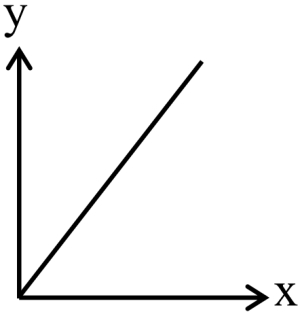

Consider a solution of $CO_{2(g)}$ dissolved in water in a closed container. Which one of the following plots correctly represents the variation of $log$ (partial pressure of $CO_2$ in vapour phase above water) [y-axis] with $log$ (mole fraction of $CO_2$ in water) [x-axis] at $25^{\circ}C$?

Similar Questions

In which of the following salts,the solubility increases appreciably with an increase in temperature?

Calculate $K_H$ when $2 \ mmol$ of $O_2$ dissolve in $540 \ mL$ of water at $27 \ ^oC$ temperature. Given $P_{O_2} = 2 \times 10^{-8} \ bar$.

Assertion : Iodine is more soluble in water than in carbon tetrachloride.
Reason : Iodine is a polar compound.

State Henry's law and mention some important applications.

Assertion: $A$ mixture of $He$ and $O_2$ is used for respiration for deep sea divers.
Reason: $He$ is soluble in blood.
